It is possible to update an embedded chart in a Word document using an Excel as the data source. These are the steps.
1. Create a new action step by clicking on three vertical dots (found to the right of the group's name) and then select "Add action step":
2. Under "Manipulating Data" select "Manipulate Data"

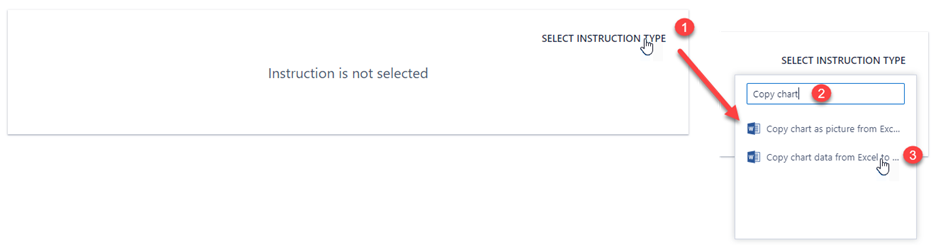

3. Click "Select Instruction Type" and search for "Copy chart"; select the "Copy chart data from Excel to Word" instruction.

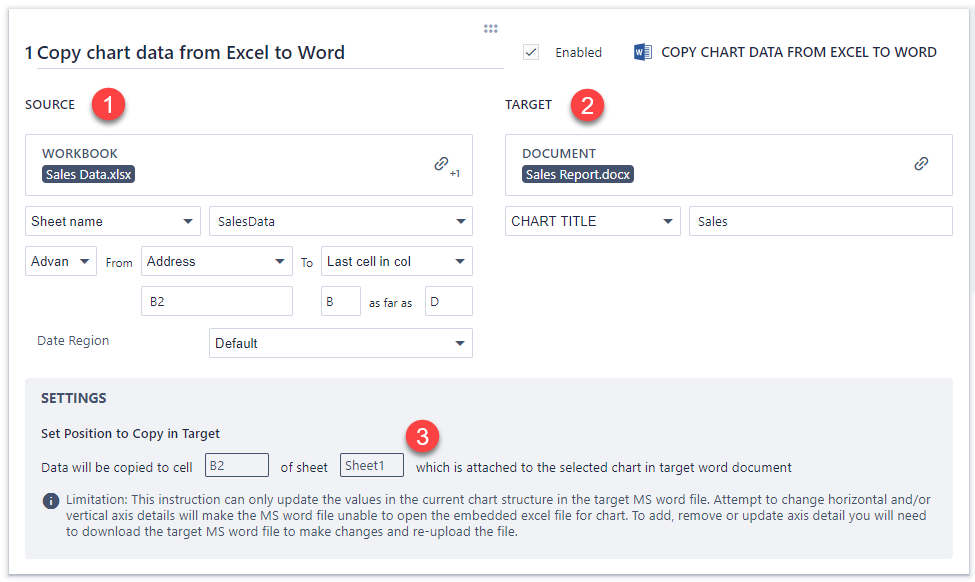

4. Link the Excel range that contains the chart data as the source  and a Word document with an embedded chard as the target .

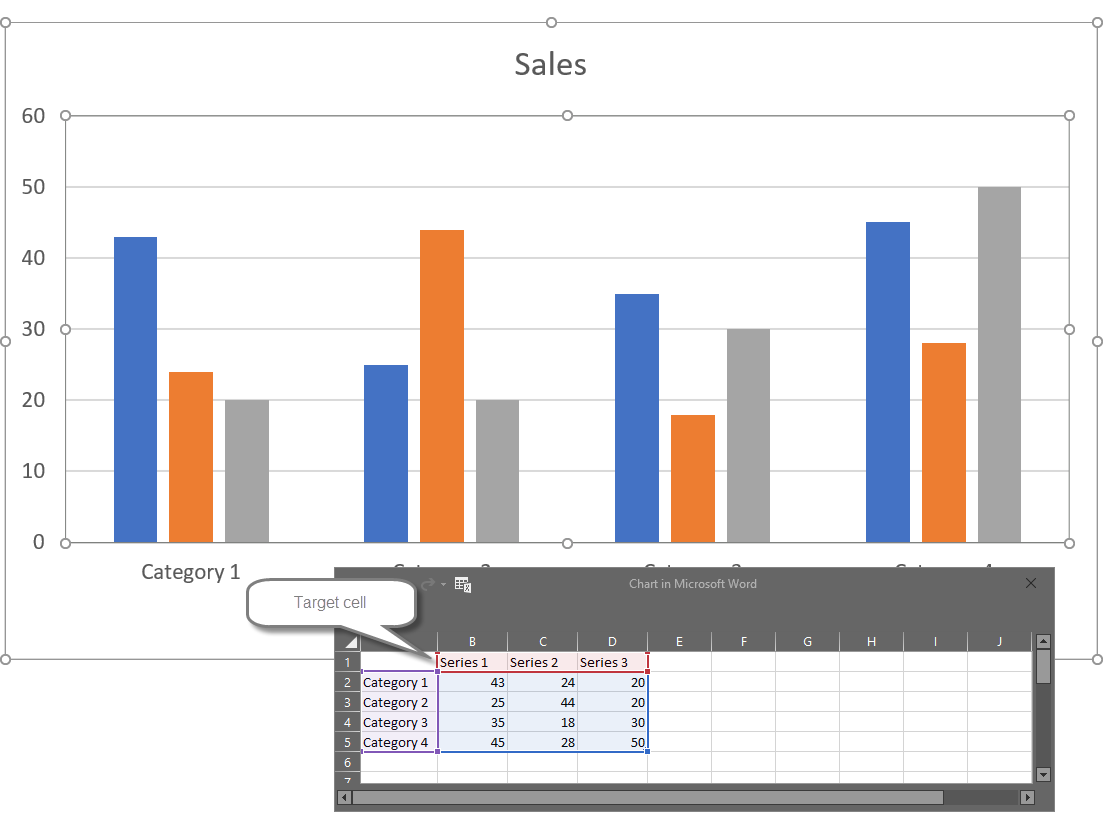

Then define the target cell where the data from Excel will be copied into the Word document
